Construction of a Large Tensile Canopy




Introduction: A Comprehensive Guide, to Constructing a Large Tensile Canopy(31 mtr X 21 mtr) using Ferrari 950 GSM Tensile Membrane Fabric


Construction of Large Tensile canopies serve both aesthetic purposes offering shade and shelter in environments like parks, stadiums and public spaces. Building a tensile canopy involves planning establishing a sturdy structural framework selecting high quality fabric and precise installation. In this step by step guide we will take you through the process of designing the canopy developing the steel structure preparing the tensile membrane fabric organizing fabric installation accessories and finally mounting the fabric onto the structure.


Step 1: Designing the Tensile Canopy


The crucial step in constructing a tensile canopy is designing it. During this phase consider factors:


1. Purpose and Location:

Determine why you need the canopy and where it will be placed. Whether it's for providing shade in a park or covering a sports facility or enhancing a structure.


2. Size and Shape:

Decide on the dimensions and shape of your canopy based on your preferences and functional requirements. You can choose from shapes, like conical or hyperbolic. Even combine forms.


3. Snow Loads:

To ensure that the canopy can withstand the wind and snow loads it is important to analyze the weather conditions. Choosing materials, for both the structure and fabric is another step. Typically steel is used for the structure while fabrics like PVC coated polyester or PTFE coated fiberglass can be utilized. To guarantee safety and stability it is advisable to consult with an engineer who can perform the engineering calculations.


Step 2: Moving on to constructing the steel structure that will support the membrane there are steps to follow:


1. Foundation:


Start by excavating and pouring foundations, which will provide support for both steel columns and anchors.


2. Steel Framework:


Assemble the steel framework in accordance with the design specifications ensuring welding and connections for structural integrity.


3. Tensioning System:


Integrate a tensioning system into the structure, which will be responsible, for tensioning the membrane fabric. This system may include cables, turnbuckles and anchor points.


4. Anti Corrosion Coating:


Apply anti corrosion coatings to enhance durability and prolong the lifespan of the steel structure.


Step 3: Now lets move on to preparing the membrane fabric.


Selecting the fabric plays a role, in both the functionality and visual appeal of the canopy. To prepare the membrane fabric follow these steps:


1. Fabric Selection:


Pick a fabric material and color that complements the design and suits the conditions. Make sure it is resistant to UV rays and fire for safety purposes.


2. Cutting and Seaming:


Cut the fabric into panels and seams as per the design specifications. Utilize specialized equipment to create lasting seams.


3. Edge Reinforcement:


Strengthen the fabric panels by adding edge reinforcements ensuring distribution of tension along the edges to prevent tearing.


4. Fabric Testing:


Conduct tests on the fabric to evaluate its strength, resistance against UV rays and other relevant properties to ensure it meets all required standards.


Step 4: Gathering Accessories for Fabric Installation


Before mounting the fabric gather all accessories for installation:

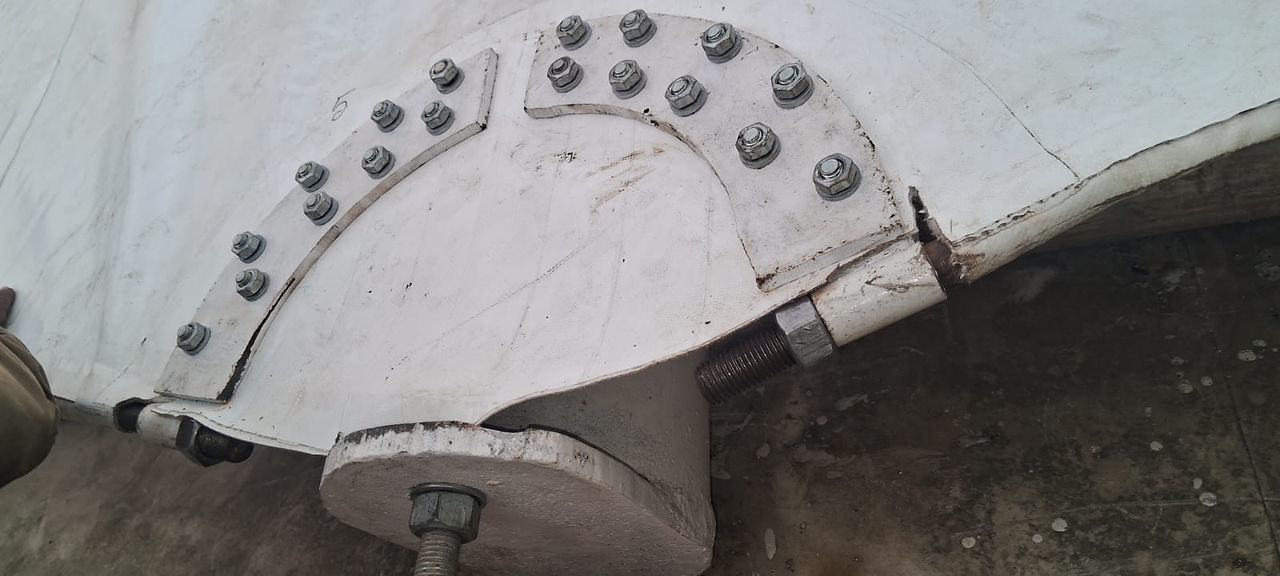

1. Clamping Systems:


Choose clamping systems like extrusion clamps or tensioned cables that securely hold the fabric in place on the structure.


2. Tensioning Devices:


Obtain tensioning devices such as turnbuckles, ratchets or hydraulic tensioners to apply tension, across all parts of the fabric.


3. Fasteners:


Safely secure the fabric using fasteners, bolts, nuts or similar mechanisms.


4. Edge Cables:


Incorporate edge cables to evenly distribute tension and maintain the shape of the fabric.


Step 5: Attaching the Fabric to the Structure


Now it's time to affix the membrane fabric onto the steel structure. Here are the steps to follow for an installation:


1. Layout and Placement:


Carefully arrange the fabric panels. Position them according to your design. Ensure alignment and distribution of tension.


2. Clamping and Tensioning:


Utilize clamping systems and tensioning devices to securely fasten the fabric onto the structure. Begin from the edges. Gradually work towards the center maintaining tension throughout.


3. Fine tuning:


Make any adjustments to eliminate wrinkles and achieve tension, in the fabric.


4. Inspection:


Conduct an inspection to identify any defects or issues addressing them promptly.


Conclusion:


Constructing a tensile canopy is an endeavor that necessitates meticulous planning, expertise in engineering and precise execution. By following this step by step guide you can create an visually appealing canopy that offers shade and shelter for various applications. Remember to prioritize safety employ high quality materials and rely on craftsmanship throughout every stage of construction, for an outcome.


Congratulations, on the completion of your tensile canopy! This architectural masterpiece will not provide shade, shelter and enhance the aesthetics of its surroundings. However your responsibilities do not end here: ongoing maintenance and care are crucial to ensure that your tensile canopy remains functional and visually appealing for years to come.


Maintenance and Care Guidelines:


1. Inspections:


Make it a habit to schedule inspections in order to identify any signs of wear and tear such as fabric damage, corrosion or loose fasteners. Early detection can help prevent issues from escalating into problems.


2. Cleaning:


Periodically clean the fabric by removing dust, dirt and other contaminants. Opt for cleaning agents. Avoid using abrasive tools that could potentially damage the fabrics surface.


3. Tension Adjustment:


Over time it is possible that the fabric may require adjustments to maintain tension. Regularly. Retighten the tensioning system as necessary.


4. Fabric Replacement:


Depending on factors, like fabric quality and environmental conditions you might need to consider replacing the membrane fabric after a number of years. It's advisable to consult with the fabric manufacturers recommendations regarding its lifespan.


Remember that proper maintenance practices will help ensure that your tensile canopy remains in condition over a period of time.


5. To prevent rust and deterioration:


It is important to apply corrosion coatings on the steel structure as recommended.


6. Prepare for damages:


It caused by weather or accidents by having a plan, in place for prompt repairs to ensure the safety and functionality of the canopy.


7. UV Coatings


If the canopy is exposed to sunlight consider applying UV coatings on the fabric to prolong its lifespan and preserve its color.


8. Maintenance


Maintaining records of the canopies construction and maintenance is crucial, for reference and effective planning of maintenance tasks.


By maintaining your canopy you can extend its lifespan and continue enjoying its benefits for many years. Moreover this practice will guarantee that the structure remains safe and functional for everyone who uses or admires it.


In summary constructing a tensile canopy is an enriching endeavor that combines design, engineering expertise and artistic creativity. When executed properly it becomes an feature that provides shelter while enhancing the visual appeal of its surroundings.


By ensuring design, careful construction, proper fabric preparation and regular upkeep your tensile canopy will become an asset, to any area. It will serve as evidence of your dedication to excellence and skillful craftsmanship.


The total cost of the construction of the above project is 5380/- square meter.
